Drainage Solutions for New Braunfels Foundations
Comal Foundation Repair provides drainage assessment and installation services for homeowners throughout New Braunfels and Comal County. Whether your drainage issues are contributing to active foundation damage or you want to prevent future problems, a free assessment identifies the right solution for your property.
Request A Free Estimate
Why Proper Drainage Matters for Your Foundation
Water is the primary driver of foundation damage in New Braunfels. Not the water itself, but what it does to the soil. When water concentrates against one side of a foundation, the clay soil on that side absorbs moisture and expands. The opposite side stays dry and shrinks. This creates differential soil pressure that pushes the foundation unevenly, causing settlement on one side, heaving on the other, and cracks in between.
The reverse is equally damaging. When clay soils dry out uniformly during drought, they shrink away from the foundation entirely, removing support and allowing the slab to settle into the void. Then the next heavy rain saturates the soil, it expands rapidly, and the foundation gets pushed again. This cycle repeats with every drought-to-rain transition, which in New Braunfels can happen multiple times per year. Proper drainage doesn’t eliminate soil movement. The clay soils in Comal County will always expand and contract with moisture. But proper drainage reduces the severity of the movement by keeping moisture levels around the foundation as consistent as possible, avoiding the extreme wet-dry swings that cause the most damage.
Drainage Services

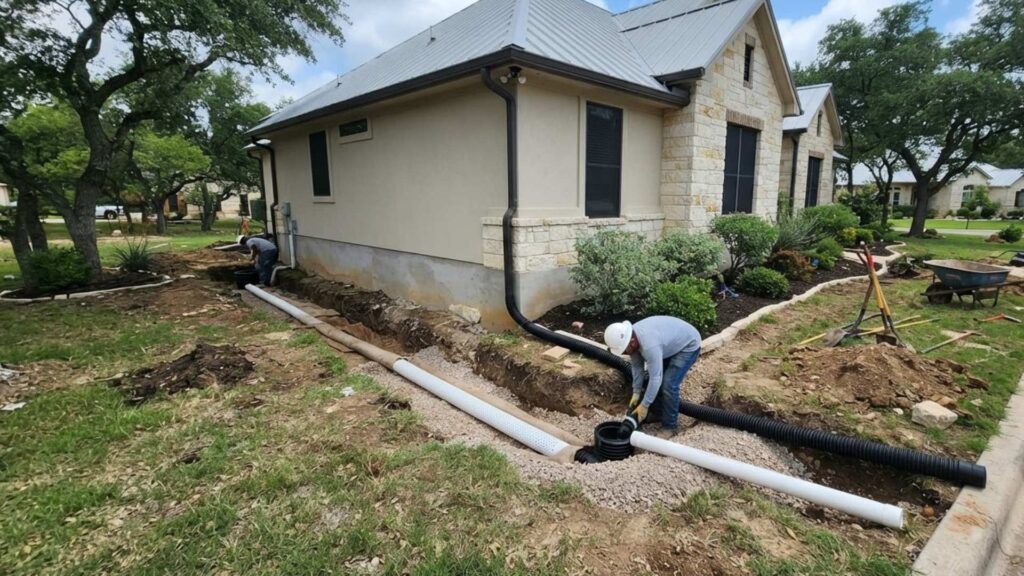

French drains. A trench (typically 12 to 18 inches deep and 6 to 12 inches wide) is dug along the foundation perimeter or at low points in the yard. The trench is lined with filter fabric, filled with gravel, and fitted with perforated pipe that collects and redirects subsurface water away from the foundation. French drains intercept groundwater before it reaches the foundation and carry it to a safe discharge point downhill from the structure.
In New Braunfels, French drains are particularly effective along the uphill side of homes built on sloped Hill Country lots, where water naturally flows toward the foundation. Homes in neighborhoods like Vintage Oaks, Copper Ridge, and other elevated communities frequently benefit from French drain installation because of the terrain.
Typical cost: $25 to $50 per linear foot installed. A standard residential French drain system runs $2,000 to $6,000 depending on the length and complexity of the installation.
Surface grading corrections. The ground around your foundation should slope away from the house at a minimum of 6 inches over the first 10 feet. If grading has settled over time, if landscaping has altered the original drainage pattern, or if the lot was never properly graded during construction, water can pool against the foundation.
Grading correction reshapes the soil surface to redirect water flow away from the structure. This is one of the most impactful drainage improvements because it addresses the most visible and direct source of water concentration against the foundation.
Typical cost: $500 to $3,000 depending on the extent of regrading needed.
Downspout extensions and management. Gutters collect roof runoff, but if downspouts discharge water directly at the foundation, they concentrate moisture exactly where you don’t want it. A standard roof in the New Braunfels area can shed hundreds of gallons of water during a single heavy rain event. If all of that water is being deposited at the foundation base through short downspouts, it’s creating exactly the kind of concentrated moisture that causes differential soil movement.
Extending downspouts 4 to 6 feet away from the foundation, or connecting them to underground drain lines that carry the water further from the structure, is one of the simplest and most cost-effective drainage improvements a homeowner can make.
Typical cost: $100 to $300 per downspout for basic extensions. $500 to $1,500 per downspout for underground drain line connections.
Channel drains. Surface-mounted drainage channels installed across driveways, patios, or other paved surfaces where water collects and flows toward the foundation. Channel drains intercept the water at the surface level and redirect it to a safe discharge point through underground pipe. They are especially useful in driveways that slope toward the garage, where water would otherwise pool against the foundation wall.
Typical cost: $1,000 to $3,000 depending on length and configuration.
Sump pump systems. For properties with persistent subsurface water problems, particularly homes in lower-elevation areas near the Guadalupe River or in neighborhoods where the water table sits close to the foundation level, a sump pump collects water from beneath or around the foundation and pumps it to a safe discharge location. Sump pumps are typically installed in a pit (sump basin) at the lowest point near the foundation, where water naturally collects.
Typical cost: $1,500 to $3,500 for a complete sump pump installation including basin, pump, and discharge line.
When Drainage Work Is Needed
- Standing water pools against the foundation after rain
- Soil along the foundation perimeter stays wet for days after a storm
- Water stains or dampness appear on interior walls near the floor
- The ground around the foundation has settled and now slopes toward the house instead of away
- Downspouts discharge directly at the foundation base
- A crawl space stays damp or has standing water
- Foundation repair has been completed but drainage issues that contributed to the original damage haven’t been addressed
- You can see soil erosion patterns where water is channeling toward the foundation
- Mold or musty odors are present near ground-level areas of the home
Important: drainage correction is often recommended alongside foundation repair, not as a replacement for it. If your foundation has already been damaged by poor drainage, fixing the drainage alone won’t reverse the structural damage. But repairing the foundation without fixing the drainage that caused the damage is likely to result in recurrence.
What Drainage Solutions Cost
| Solution | Typical Cost Range |
|---|---|
| French drain (per linear foot) | $25 – $50 |
| French drain (complete system) | $2,000 – $6,000 |
| Surface grading correction | $500 – $3,000 |
| Downspout extensions (per downspout) | $100 – $300 |
| Underground downspout drain lines (per downspout) | $500 – $1,500 |
| Channel drain installation | $1,000 – $3,000 |
| Sump pump installation | $1,500 – $3,500 |
Frequently Asked Questions
Can I fix drainage problems myself?
Some drainage improvements are DIY-friendly. Extending downspouts, adding splash blocks, and adjusting sprinkler patterns to keep water away from the foundation are simple steps any homeowner can take. French drain installation, grading correction, and sump pump installation are better handled by professionals who can assess the full drainage picture and ensure the solutions work together effectively.
Will fixing drainage prevent foundation problems?
Proper drainage significantly reduces the risk of foundation damage by moderating soil moisture levels around the foundation. It can’t eliminate the risk entirely because the underlying clay soils will always respond to regional weather patterns, but it removes the most common accelerant: concentrated water against the foundation. Think of drainage as foundation insurance rather than a guarantee.
Should drainage be fixed before or after foundation repair?
If your foundation already needs repair, the repair should come first. Once the foundation is stabilized and leveled, drainage corrections are made to address the conditions that contributed to the original damage. Installing drainage before repair can be wasted effort if the repair process changes the grading around the foundation.
How do I know if my drainage is contributing to foundation damage?
The clearest signs are standing water against the foundation after rain, soil that stays wet along the foundation for days after a storm, downspouts discharging directly at the foundation base, and ground that slopes toward the house rather than away. If you’re seeing foundation symptoms (cracks, sticking doors, uneven floors) and also noticing these drainage issues, the two are very likely connected.
How often should drainage systems be maintained?
French drains should be inspected annually for clogs or sediment buildup. Downspouts and gutters should be cleaned at least twice per year (spring and fall). Sump pumps should be tested quarterly to ensure they activate properly. Surface grading should be checked annually and corrected if settling has redirected water flow back toward the foundation.
Get a Free Drainage Assessment
If you’re seeing standing water near your foundation, if your soil stays wet for days after rain, or if you want to protect your foundation before problems develop, a free drainage assessment identifies exactly what needs to be done. We’ll evaluate your grading, downspout discharge, subsurface water, and overall drainage pattern and recommend the most effective solution for your property. Comal Foundation Repair serves all of New Braunfels and surrounding Comal County communities.
